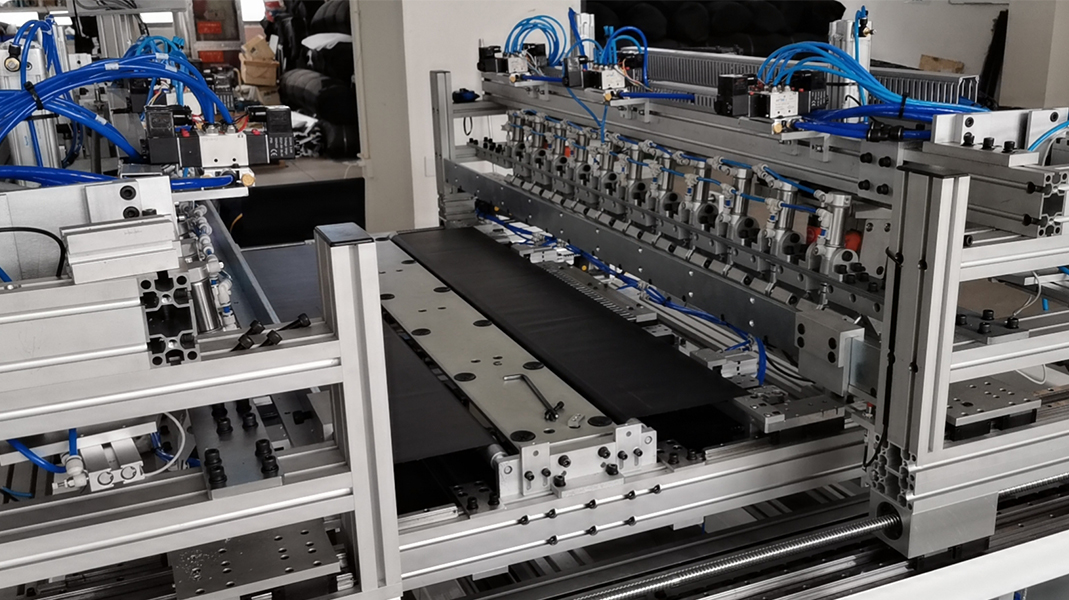

A5F-1200 Wooden Canvases Stretching Stapling Machine

ALLIO A5F-1200 automatic Stretching & Stapling machine uses patented technologies such as servo control, bandage modules and arrayed nail gun modules that auto adjusts the depth of nails to avoid nail-breaking and floating nails.

Working together with one units, the A5F-1200 Wooden Canvases Stretching & Stapling Machine can mount up to 180 canvases per hour, easily operate by anyone, even by 60+ years old lady, which is several times faster than tradition manual production.

A5F-1200 Wooden Canvases Stretching & Stapling Machine is a fully automatic system that is suitable for mass production of picture frames. The operation is very simple, just enter the "length, width, height" of the product, and the machine enters the standby state in a few seconds.

Product Models: A5 Seriel: A5-600, A5-800, A5-1000 & A5-1200 is available
Minimum edge length: 7”(180mm) 8”(203mm) 18”(450mm)
Maximum edge length: 24”(610mm) 32”(813mm) 40”(1016mm) 48”(1220mm)
Nail Spacing: Freely adjust As per your request ( Suggest space: 50 mm )
Canvas size: Artwork size + 2 x Panel thickness + Margin size; (Margin size: 45+/-5mm; )
Production Capacity: 180 to 300 pcs per hour, (15 to 20 seconds each)
Operating mode: easily operate, fully automatic stretching & stapling
Working mode: automatic rotation, flanging, corner folding, automatic nailing by nail gun
Remote assistance: Diagnose faults and update programs
Please contact us for details.
